gc2usb¶
GameCube controller to USB HID gamepad.
Overview¶
Reads a native GameCube controller via the joybus single-wire protocol and outputs as a USB HID gamepad. Full support for both analog sticks, analog triggers (L/R), and rumble motor. Three button mapping profiles.
Input¶
GameCube Input -- Joybus PIO protocol on GPIO 29, polled at 125Hz (native GC rate).
Output¶
USB Device Output -- USB HID gamepad with multiple emulation modes.
Core Configuration¶
| Setting | Value |
|---|---|
| Routing mode | SIMPLE (1:1) |
| Player slots | 1 (fixed) |
| Data pin | GPIO 29 |
| Profile system | 3 profiles |
Profiles¶
| Profile | Description |
|---|---|
| Default | Standard mapping: A=B1, B=B2, X=B3, Y=B4, Z=R2. Triggers map to L2/R2 analog. |
| Xbox Layout | A/B swapped |
| Nintendo Layout | X/Y swapped |
Default Profile Button Mapping¶
| GC Button | USB Output |
|---|---|
| A | B1 |
| B | B2 |
| X | B3 |
| Y | B4 |
| L | L1 |
| R | R1 |
| Z | R2 |
| Start | S2 |
| D-Pad | D-Pad |
| Main Stick | Left Analog |
| C-Stick | Right Analog |
| L Trigger | L2 (analog) |
| R Trigger | R2 (analog) |

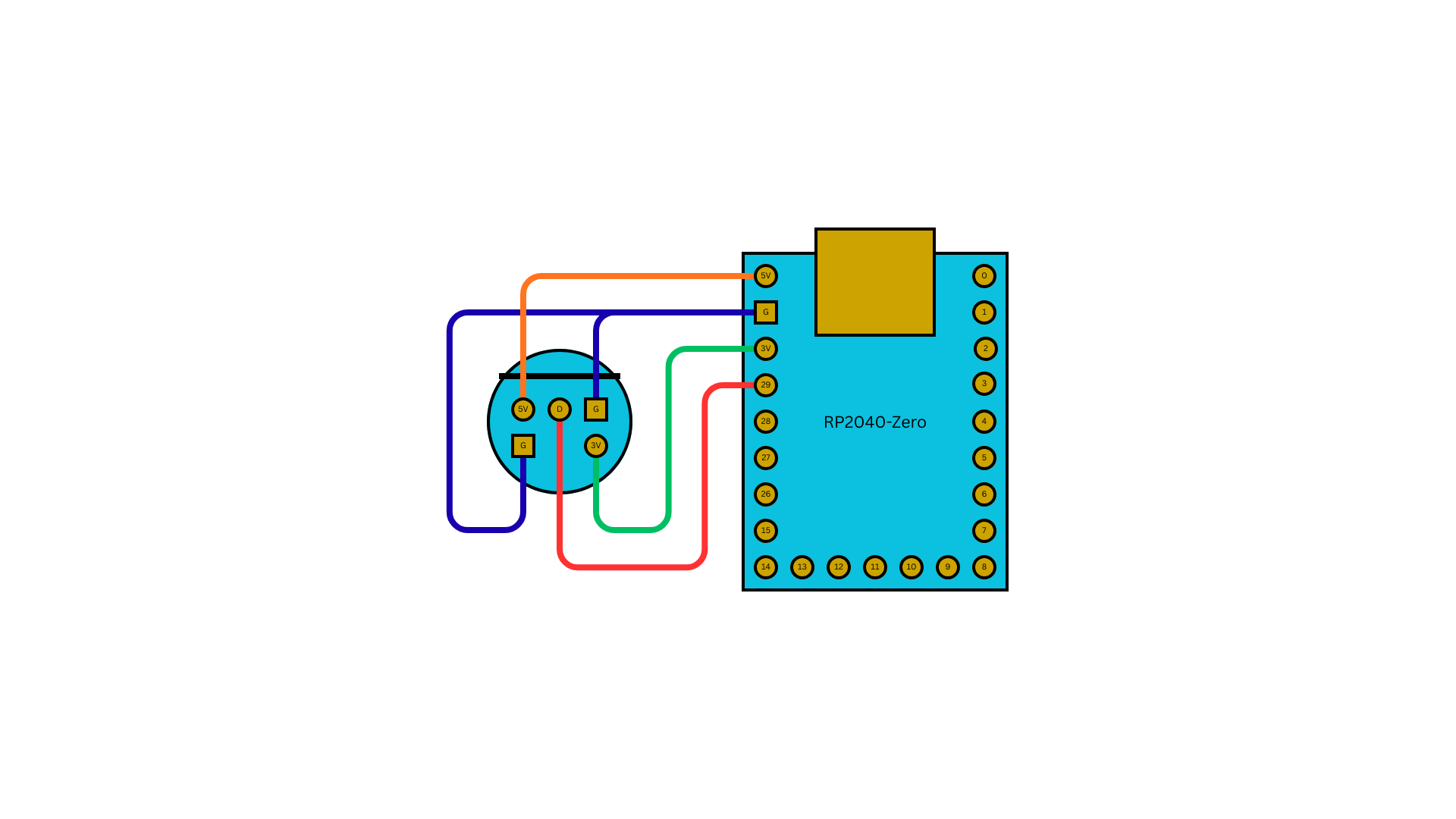

Wiring¶
Key Features¶
- Full analog -- Main stick, C-stick, and L/R analog triggers all mapped.
- Rumble -- GC rumble motor driven by USB host feedback.
- USB output modes -- SInput, XInput, PS3, PS4, Switch, Keyboard/Mouse.
- Web config -- config.joypad.ai.
Supported Boards¶
| Board | Build Command |
|---|---|
| KB2040 | make gc2usb_kb2040 |
